The versatility and adaptability of Ishida’s multihead weighing technology is attested to at a leading pasta manufacturer as they benefit from many years of being able to weigh all dried pasta varieties, whatever their shape and level of pasta fragility.
The pasta produced by the company comes in many shapes and sizes and ranges from curly vermicelli, a challenge to weigh accurately due to its tendency to clump together, to the company’s speciality shape, curved tubes, that flow quickly and easily. By contrast, penne (“quills”’) and farfalle (“bows”) are particularly delicate varieties that require gentle handling to maintain their quality.

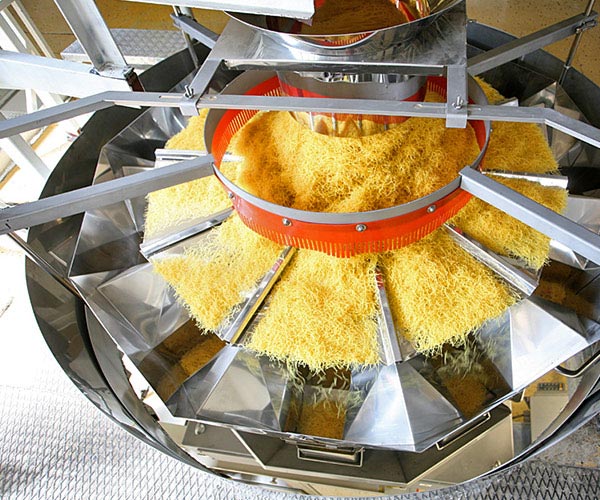

To keep breakage of delicate varieties to a minimum, hoppers feature a special lining while discharge chutes are fixed at a shallow angle. These built-in features not only ensure a gentler transit.

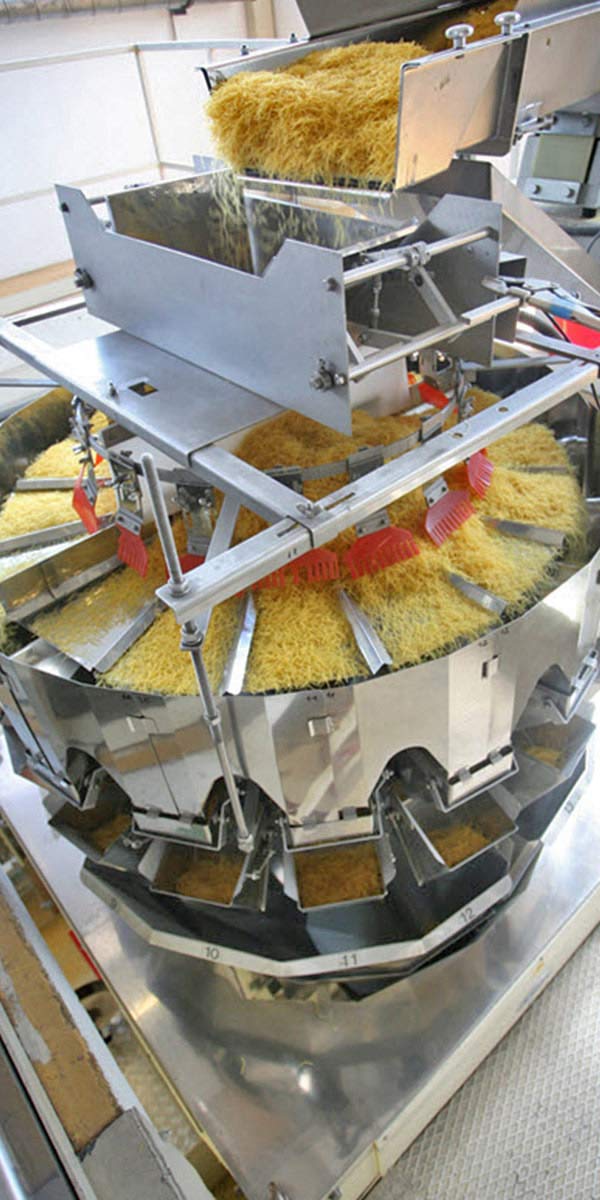

The Ishida multihead weighers installed on eight highly-automated packing lines can be quickly programmed to handle virtually any of its pastas, whatever their size, shape or fragility. The weigher’s vibratory system adjusts itself automatically to match the flow characteristics of the pasta being handled. To keep breakage of delicate varieties to a minimum, hoppers feature a special lining while discharge chutes are fixed at a shallow angle. These built-in features not only ensure a gentler transit, they also reduce factory noise.
Increasing still further the versatility of the packing lines, two of the eight Ishida multiheads are 16-head machines which work as two separate eight-head weighers - each coupled to its own bagmaker. Both weigher halves work independently so, when film has to be changed for one bagmaker, the other can carry on working, adding value to the operation.
Usually 8-head multihead weighers would not be accurate enough for Ishida’s high precision standards as the number of hopper combinations for the target weight would not allow for sufficient weighing accuracy. However, as both 16-head machines are fitted with an additional set of ‘booster hoppers’, each 8 head weigher section effectively works with 16 hopper combinations, enabling it to select and combine its optimum weight to two independent packing lines.
Each packing line is operated by a single person, controlling the multihead weigher via its colour touch-screen monitor. Pre-set parameters mean changeovers from one product to another are fast and simple. Complete cleaning takes just 30 minutes per weigher.
For a quarter of a century Ishida multihead weighers have done everything the company demands of them, operating dependably throughout two shifts daily, year after year. “We bought our first multihead in the late 1980s, subsequently, we have had no need to change suppliers, since the equipment is very reliable and operating procedures are consistent from one generation of machines to the next.”
